Loader – Avant Wheeled

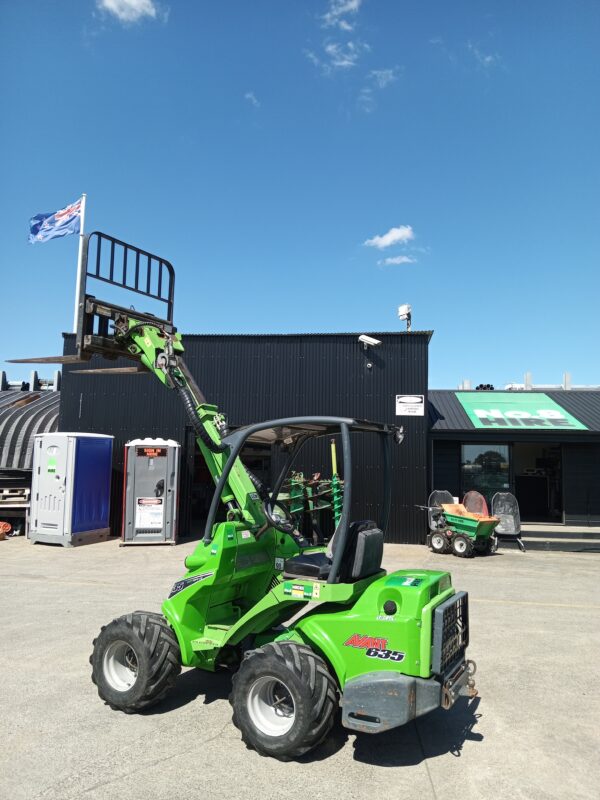

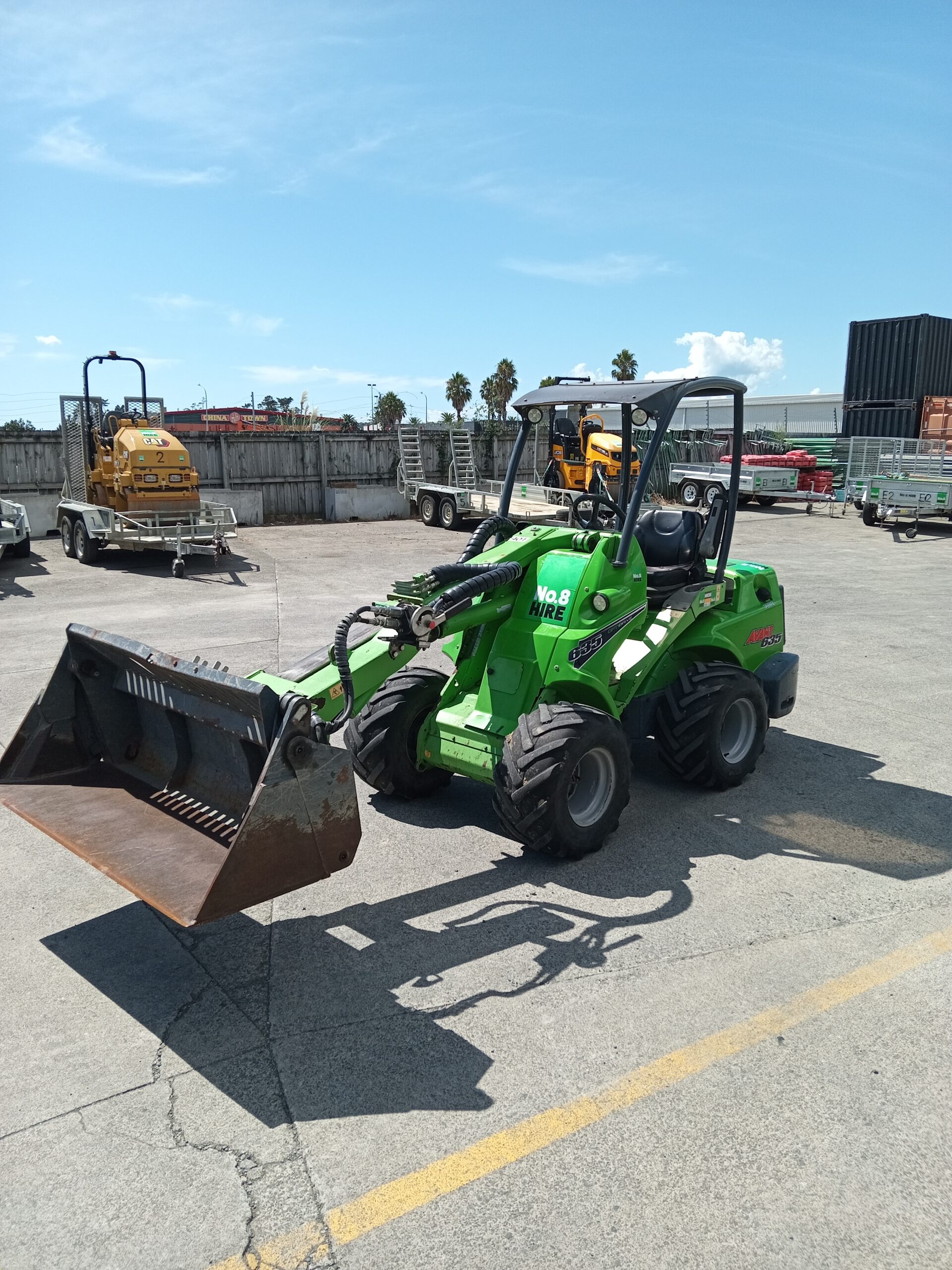

1500kg Wheeled Loader with Telescopic Boom
Length 2610 mm
Width (with standard wheels) 1290 mm
Height (with standard wheels) 2060 mm
Weight 1570 kg
Standard wheels 26×12.00-12″ Grass/TR
Transmission, drive hydrostatic Avant OptidriveTM
Pulling force max. 1000 kp
Drive speed max. 12 km/h
Aux. hydraulics oil flow / pressure 66 l/min 200 bar
Turning radius inside/outside 940 / 2250 mm
Max. lifting height 2835 mm
Tipping load 1190 kg
Max. breakout force / 50 cm 1250 kg
Engine make and type Kohler KSD 1403NA Stage V, 3-cyl.
Engine output (Ece r120) 19 kW (26 hp)
Maximum torque 90 Nm @ 1800 rpm
Fuel Diesel
